Description

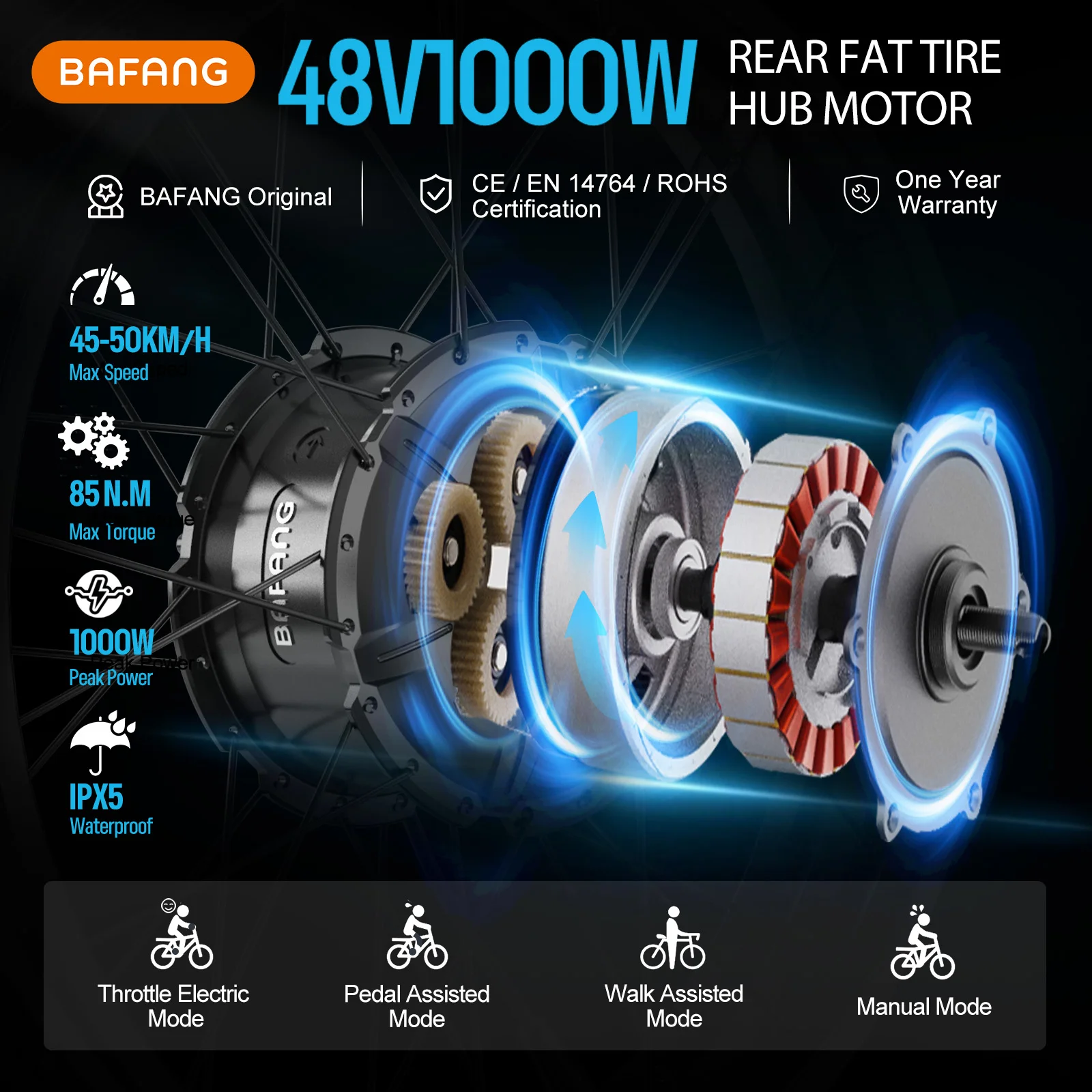

Take your eBike performance to the next level with the powerful and reliable BAFANG H550 RM G062.1000.DC Rear Drive Hub Motor, engineered for riders who demand serious torque, speed, and all-terrain capability. Delivering an impressive 1000W rated power with a peak output of 1440W, this high-efficiency brushless gear hub motor reaches speeds up to 45KM/h on a 26-inch wheel or 20 inch wheel while generating a massive 85N.m of torque for conquering steep hills, snow, sand, mud, mountain trails, and city roads with ease. Designed with a durable cassette-compatible freehub body, quiet operation under 55dB, and IPX5 waterproof protection, this 48V motor is built for dependable performance in harsh riding conditions and temperatures ranging from -20℃ to 45℃. Its rugged 36H*12G spoke configuration and compatibility with both 20-inch and 26-inch wheel setups make it an ideal upgrade for custom eBike builds or high-performance conversions. CE certified and available with fast 1–7 day delivery, the BAFANG H550 offers the perfect combination of power, durability, and adventure-ready performance for TechLifeStudio.com.

Brake: Disc Brake

Brand Name: BAFANG

Certification: CE

Delivery Time: 1 – 7 Day Delivery

Design: Brushless

Efficiency(%): 80%

Freehub Body: Cassette

High-concerned chemical: None

Maintain Point: US/UK/PL/FR/ES

Max Speed under Load (26″ Wheel): 45KM/h

Max Torque (N.m): 85N.m

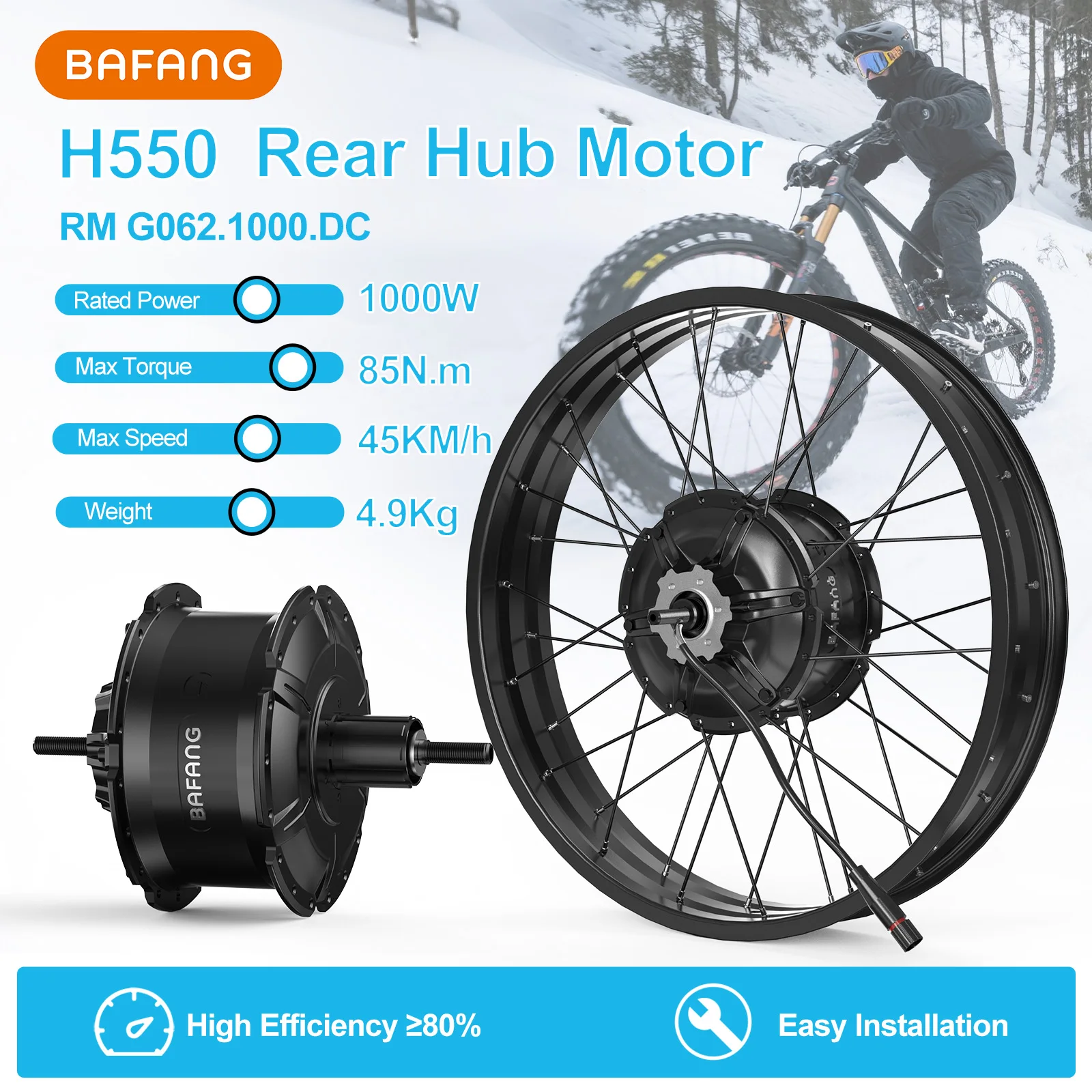

Model No: H550 RM G062.1000.DC

Motor: Brushless Gear Hub Motor

Mounting Position: Rear Drive

Noise Grade (dB): <55dB

Operation Temperature: -20℃-45℃

Origin: Mainland China

Peak Power (W): 1440W

Rated Current (A): ≤27.8A

Rated Power (W): 1000W

Rated Speed (Rpm): 420±15

Salt Spray Test Standard (h): 96h

Spoke Specifications: 36H*12G

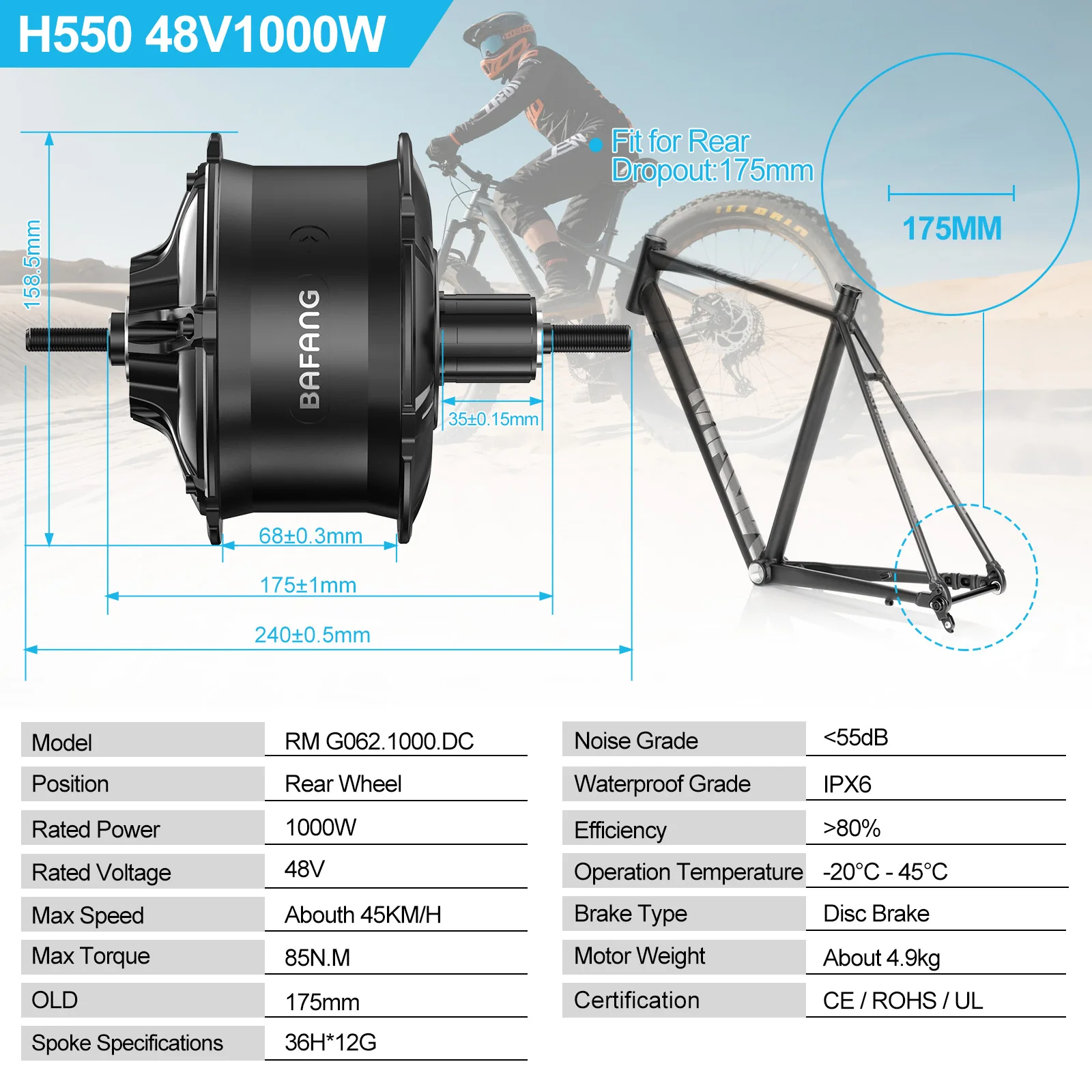

Suitable Size 500W: 172-180MM (Rear Drop Out Size)

Usage: Snow / Sand / Mud / Mountain / Road

Voltage: 48V

Waterproof Grade: IP X5

Wattage: > 400w

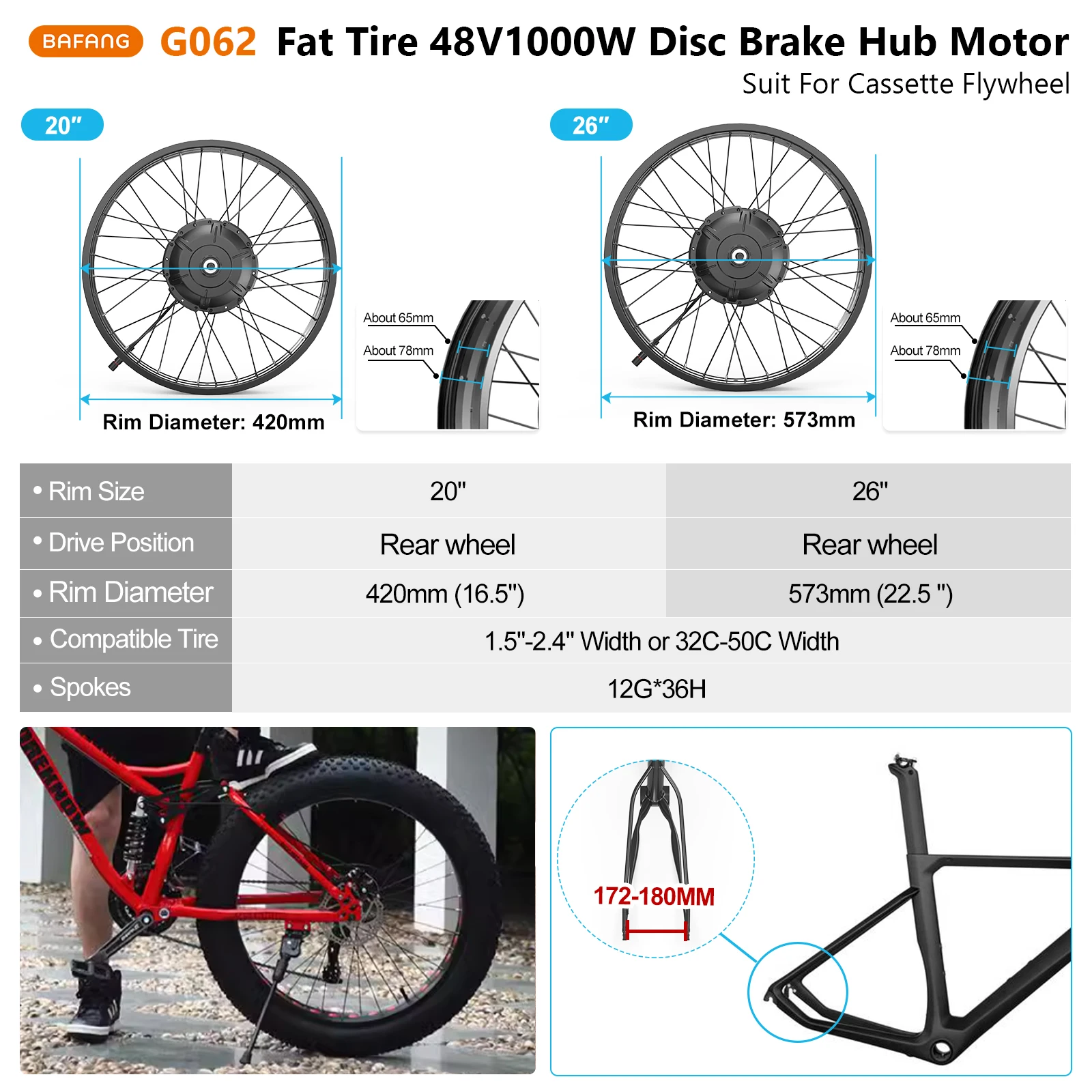

Wheel Size: 20/26
